Field Engineering Photo Gallery (100% Real Projects, Zero AI)

20 kV Switchgear Cubicles © BRT Real Field

Schneider Electric 20 kV SM6 Switchgear Installation (IM, QM & GAM)

Schneider Electric SM6 20 kV medium-voltage switchgear suite (IM Incomer, QM Fused Switch & GAM Cable Connection) installed in substation room with active voltage presence indicators (VPIS) and mechanical interlocks per PLN standards.

Tegangan: 20 kV Merk: Schneider Electric SM6

20 kV Switchgear Cubicles © BRT Real Field

20 kV Medium Voltage Cold-Shrink Cable Termination

Precision 20 kV cold-shrink termination with silicone stress control cones inside cubicle lower compartment, directly connected to disconnecting jaws and copper earthing busbars.

Jenis: Cold-Shrink Termination Tegangan Kerja: 24 kV Max / 20 kV Nom.

20 kV Switchgear Cubicles © BRT Real Field

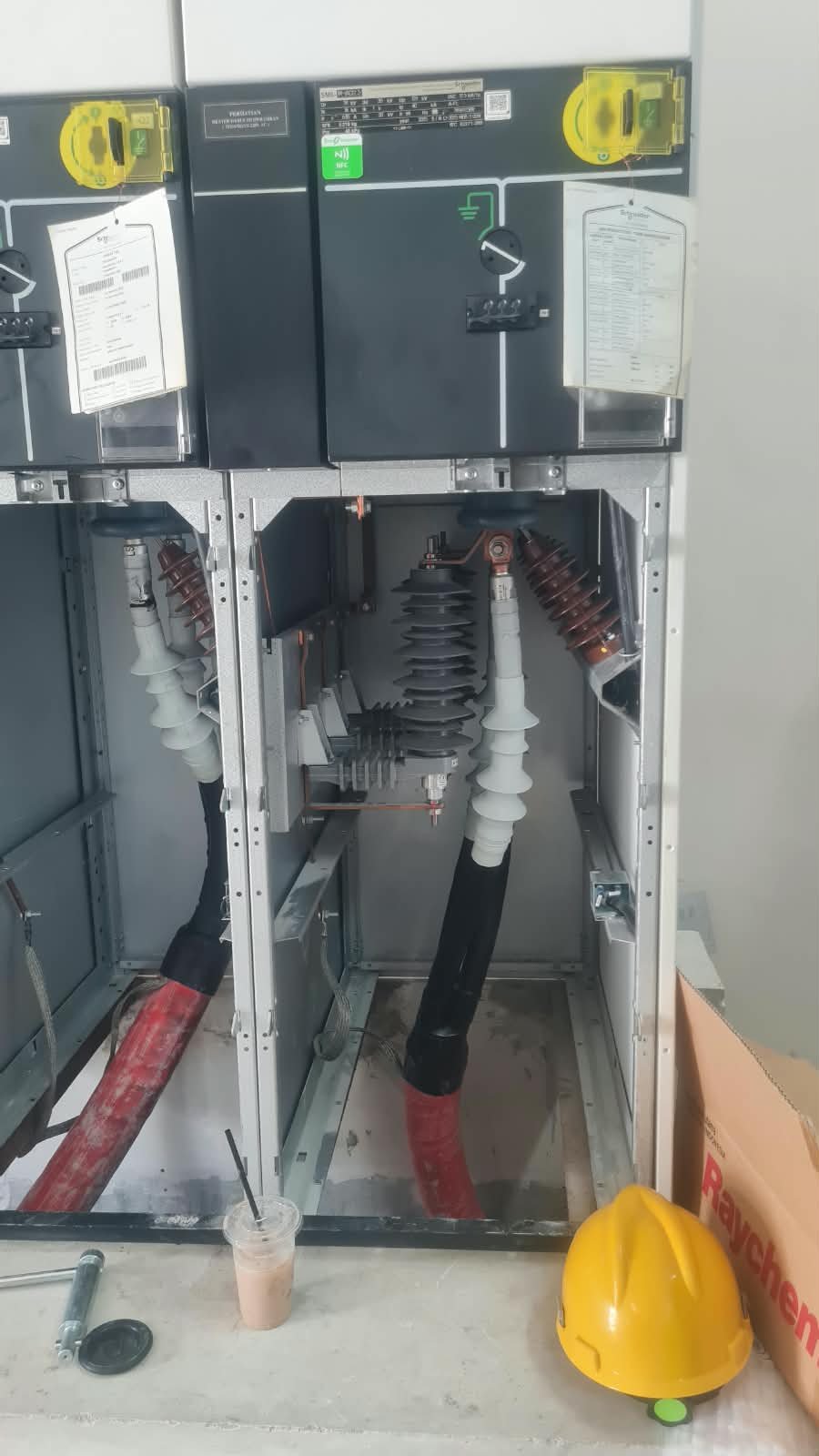

Dual-Bay 20 kV Cable Termination Compartment

Dual-bay switchgear cable termination compartment equipped with high-dielectric epoxy resin post insulators and solid copper grounding busbar for fault current clearance.

Konfigurasi: Dual-Bay Incoming/Outgoing Isolator: Epoxy Resin Post

20 kV Switchgear Cubicles © BRT Real Field

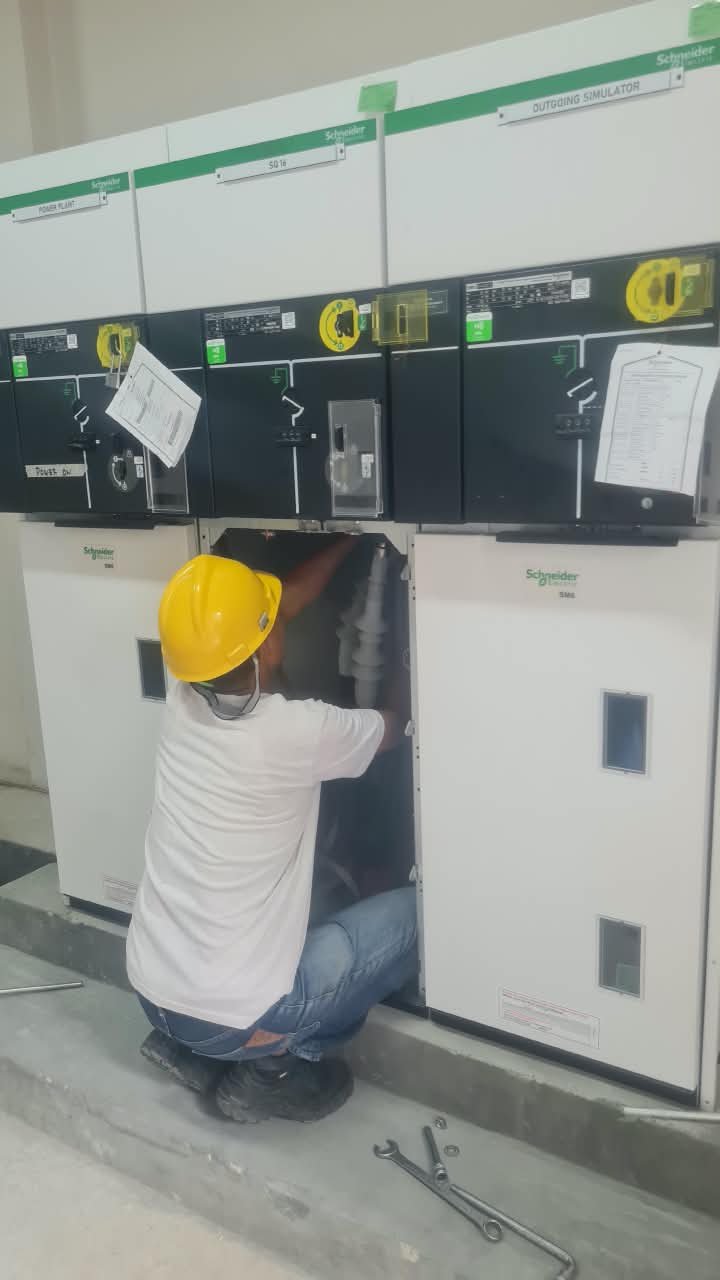

On-Site Busbar Assembly & Torque Checking

Certified BRT field electrical technician in full PPE performing on-site assembly and calibrated torque verification on 20 kV copper busbar joints per Schneider Electric manufacturer specifications.

Proses: Busbar Torque Calibration APD: Helm K3, Rompi Safety, Sepatu Isolasi

20 kV Switchgear Cubicles © BRT Real Field

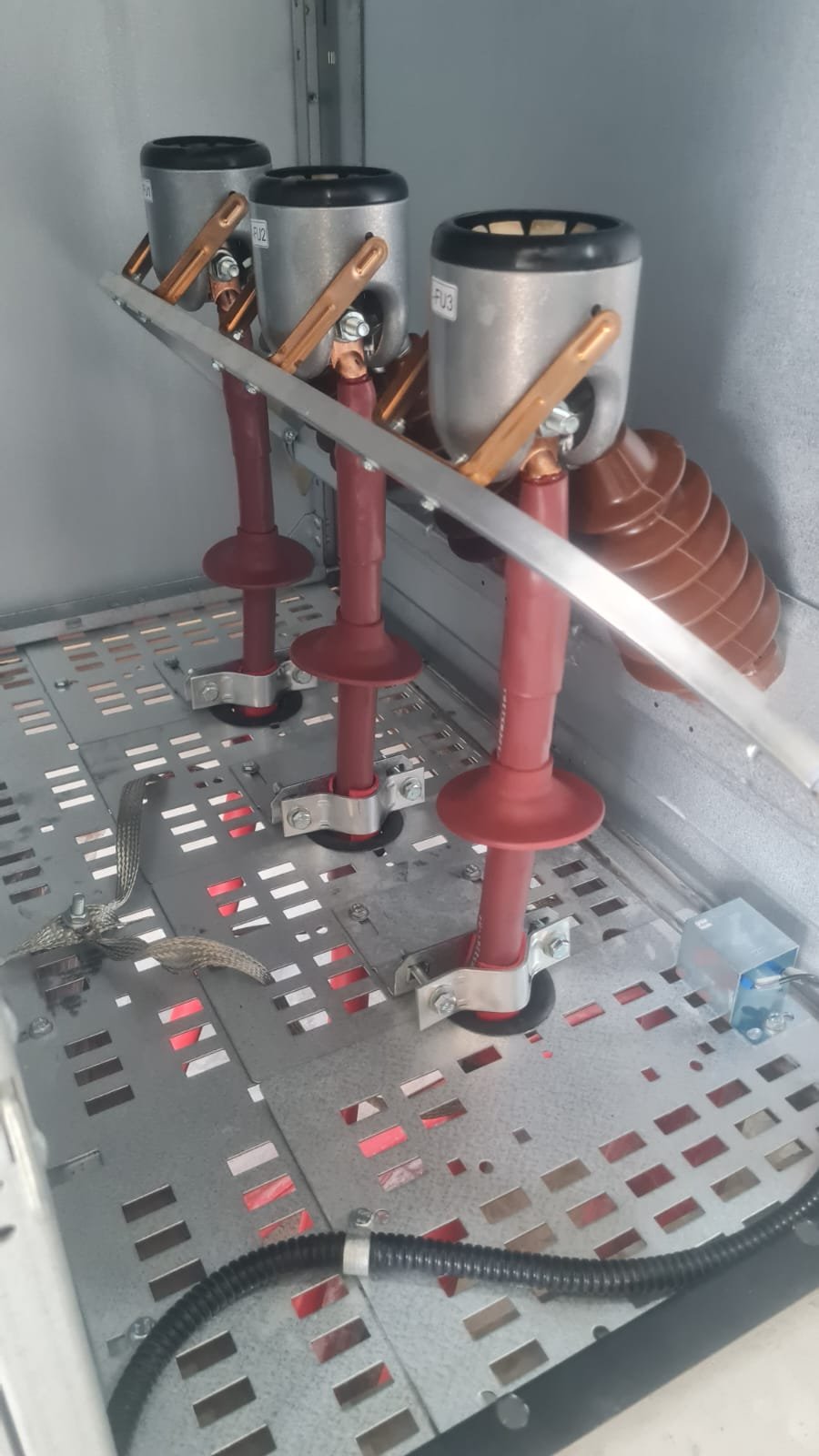

20 kV Fast-Acting Earthing Switch & Contact Jaws

Inspection of high-voltage grounding switch contact jaws and support insulators ensuring complete operator safety during routine maintenance and grid isolation.

Mekanisme: Fast-Acting Earthing Switch Rating Hubung Singkat: 16 kA / 1s

20 kV Switchgear Cubicles © BRT Real Field

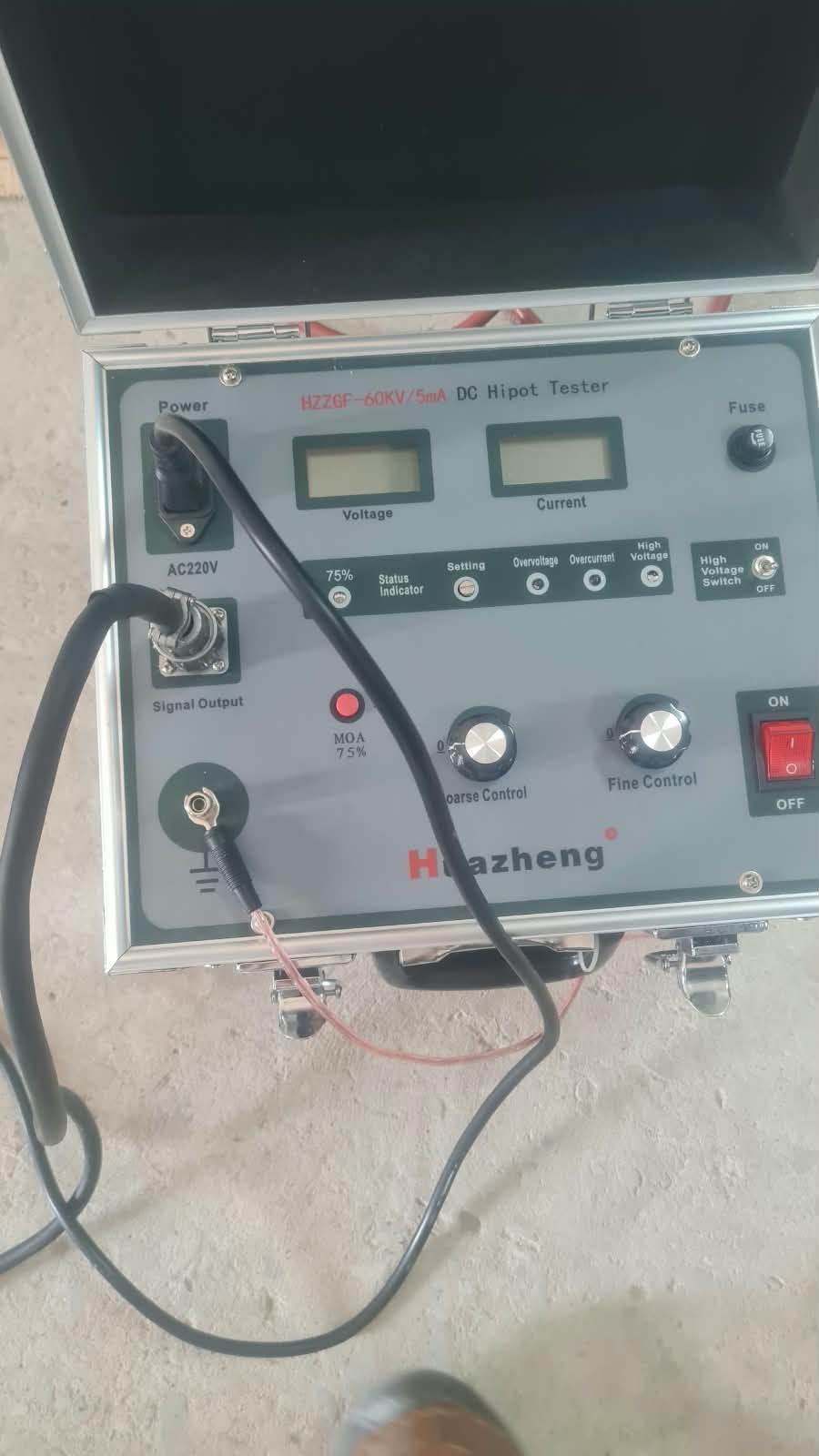

20 kV High-Voltage Hipot & Insulation Resistance Commissioning

Dielectric high-voltage proof testing (Hipot Test) and insulation resistance verification using calibrated Huazheng equipment prior to ESDM SLO certification and PLN energization.

Alat Uji: Huazheng HV Hipot Test Set Tegangan Uji: Hingga 50 kV AC/DC

20 kV Switchgear Cubicles © BRT Real Field

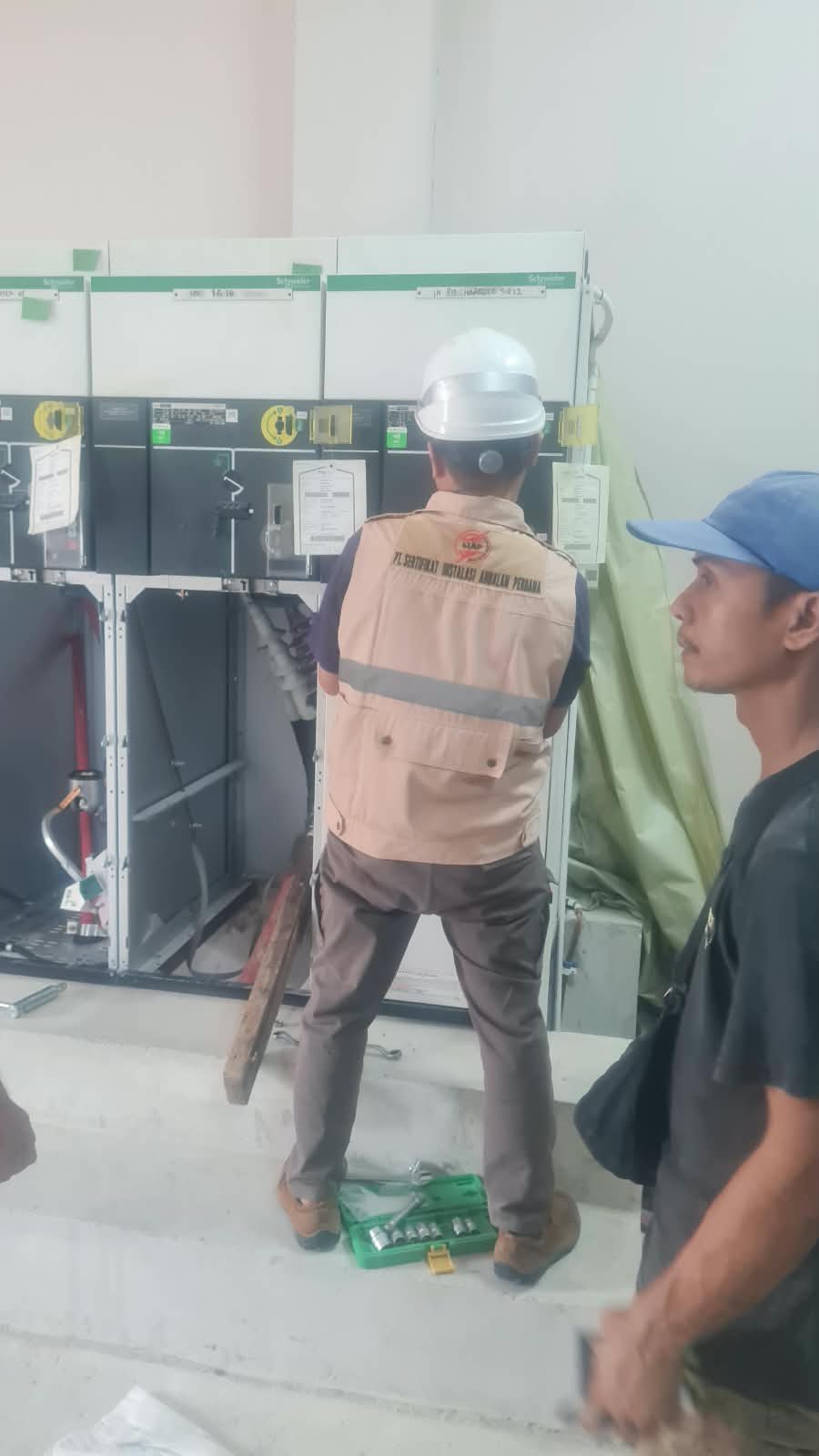

Switchgear Trench Positioning & Mechanical Alignment

BRT electrical engineering crew positioning and aligning 20 kV switchgear modular bays over substation concrete cable trench with laser precision leveling.

Pekerjaan: Trench Alignment & Base Frame Leveling Lokasi: Gardu Distribusi Industri Riau

Substations & Transformers © BRT Real Field

Transformer Substation Inspection by BRT Managing Director & Lead Engineer

BRT Managing Director Gatot Baskoro Adi with lead project engineer conducting final site inspection of a 1,600 kVA oil-immersed distribution transformer (ONAN) at a modern palm oil mill.

Kapasitas: 1.600 kVA (1,6 MVA) Rasio Tegangan: 20 kV / 400 V

Substations & Transformers © BRT Real Field

20 kV Cable Termination on Transformer Medium-Voltage Bushings

Two certified BRT electrical technicians in safety helmets and PPE installing red 20 kV medium-voltage cable terminations directly onto transformer high-voltage porcelain bushings.

Tegangan Masuk: 20 kV Fase R-S-T Bushing: Porcelain MV Outdoor/Indoor

Substations & Transformers © BRT Real Field

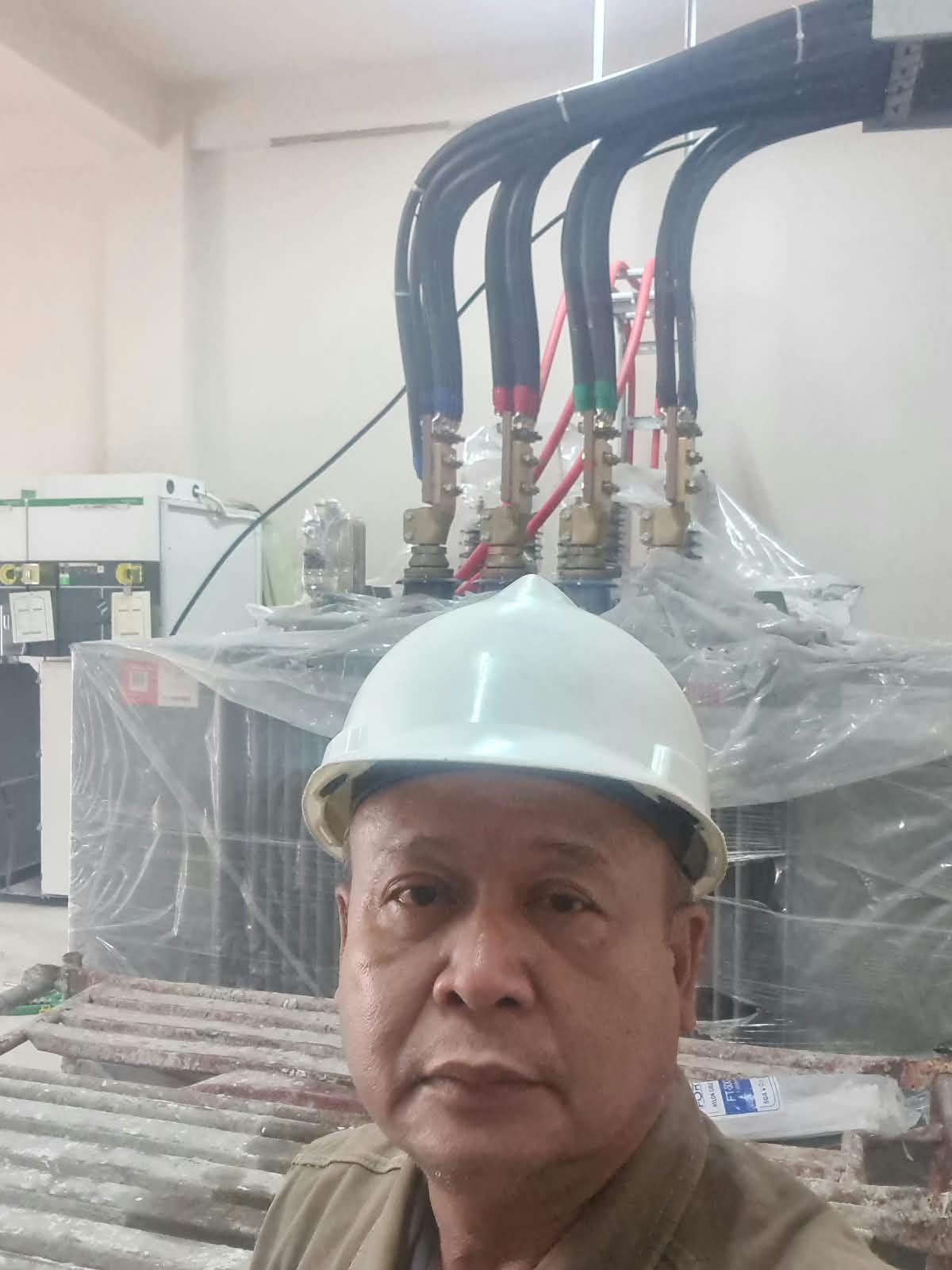

Managing Director Site Supervision in Substation Transformer Bay

Director Gatot Baskoro Adi personally supervising power transformer clearance distances and primary cabling layout in full compliance with Indonesian PUIL 2011 safety standards.

Supervisi: Gatot Baskoro Adi (Direktur BRT) Standar Keamanan: PUIL 2011 / SPLN Listrik Industri

Substations & Transformers © BRT Real Field

Circuit Breaker Operation & Substation Energization Test

Mechanical interlocking verification and circuit breaker switching test with illuminated red voltage indicator confirming readiness for 20 kV PLN grid energization.

Operasi: Breaker Switching Test Indikator: Live Line Presence VPIS

Substations & Transformers © BRT Real Field

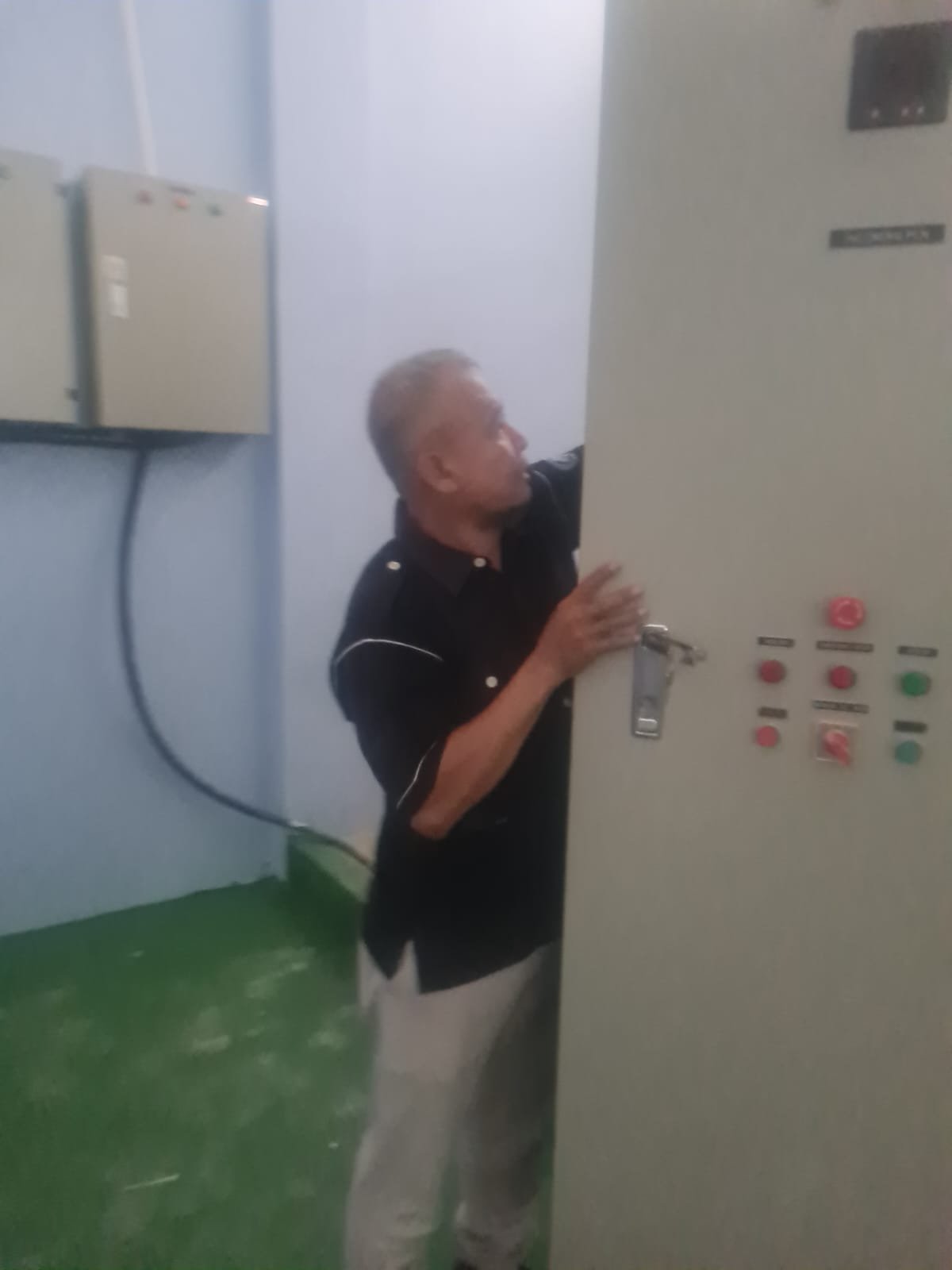

Substation Panel Door Safety Interlock Inspection

Verification of mechanical door-interlock safety mechanisms preventing door opening while the 20 kV high-voltage system remains energized.

Sistem Keselamatan: Key Interlocking System Aplikasi: Gardu Distribusi 20 kV

LVMDP & Main Switchboard © BRT Real Field

Complete LVMDP Switchboard Assembly with Main ACB & Outgoing MCCBs

Full interior view of multi-compartment LVMDP switchboard at BRT Pekanbaru workshop, equipped with main Schneider Masterpact Air Circuit Breaker (ACB) and outgoing Compact NSX MCCB feeder tiers.

Arus Utama: 2.500 A – 3.200 A Pemutus Utama: Air Circuit Breaker (ACB)

LVMDP & Main Switchboard © BRT Real Field

Symmetrical Array of Schneider Electric Compact NSX MCCBs

Precision installation of Schneider Electric Compact NSX molded case circuit breakers (MCCB) for motor and process loads at industrial processing facilities.

Komponen: Schneider Compact NSX Proteksi: Thermal-Magnetic & Electronic Trip

LVMDP & Main Switchboard © BRT Real Field

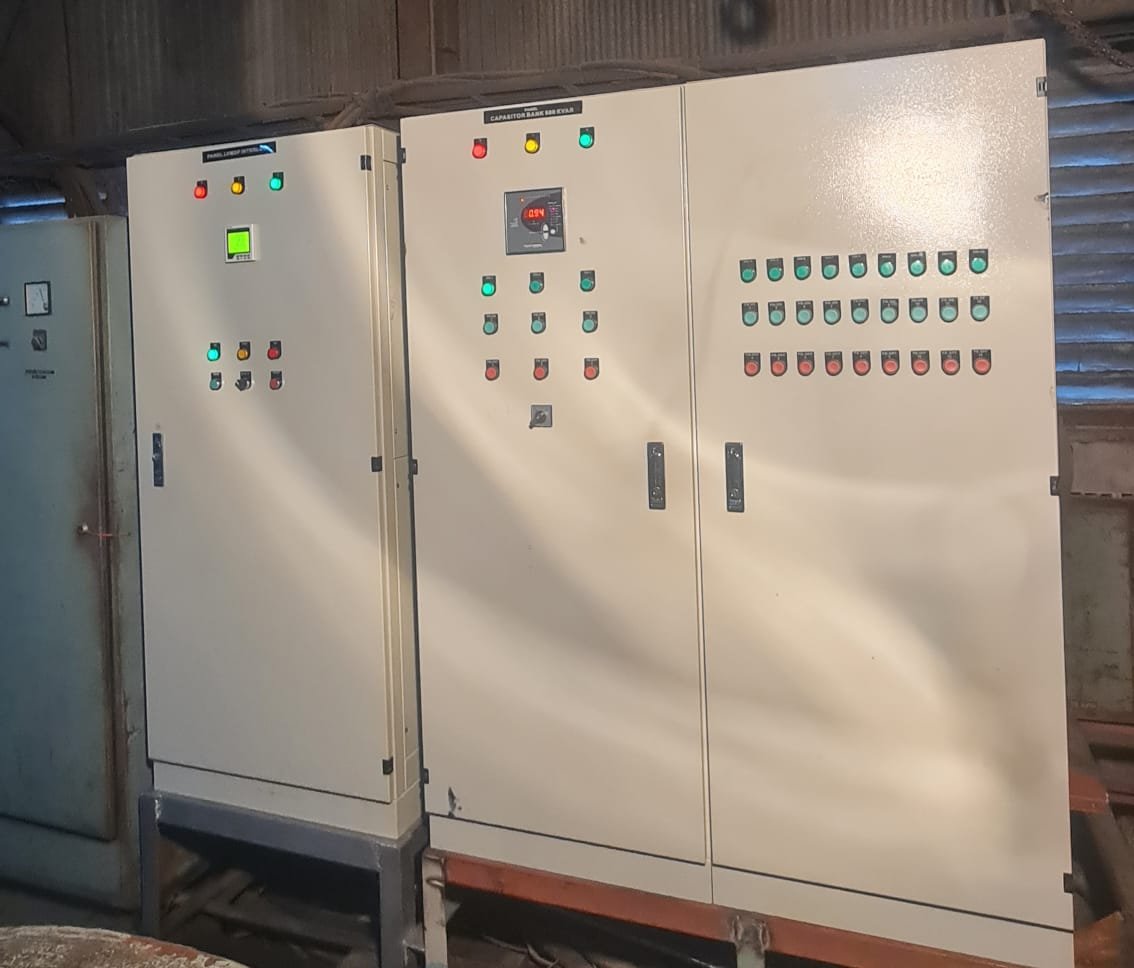

LVMDP Front Doors with Digital Multi-Function Meters & Phase Lights

Front facade of heavy industrial LVMDP switchboard featuring digital multifunction power quality meters, R-S-T phase pilot lamps, and IP54 key-locked handles.

Proteksi Fisik: Enclosure IP54 Powder Coated Metering: Digital Power & Harmonics Meter

LVMDP & Main Switchboard © BRT Real Field

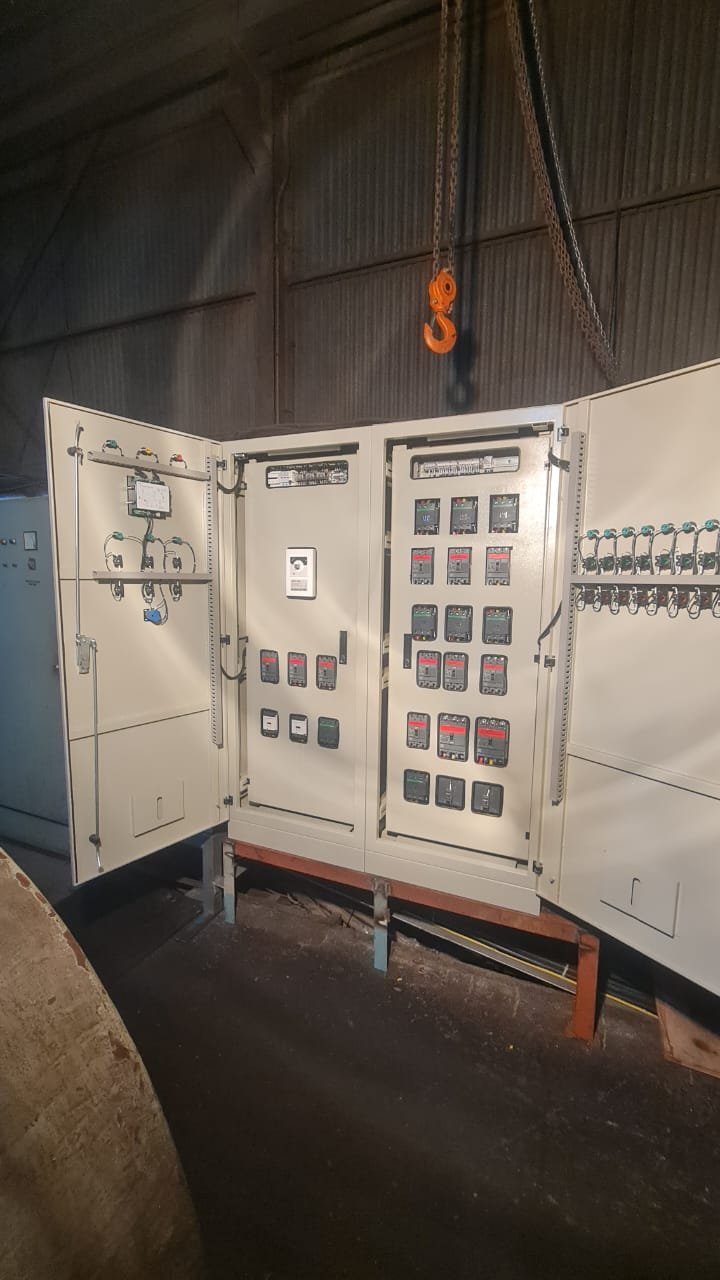

Door Wiring Harness, Ferrule Terminations & Terminal Blocks

Neat door wiring harness utilizing flexible industrial control cables with numbered wire ferrules, spiral wrapping, and heavy-duty terminal blocks.

Standar: Pengabelan Kontrol PUIL 2011 Penandaan: Ferrule Numerik Standar IEC

LVMDP & Main Switchboard © BRT Real Field

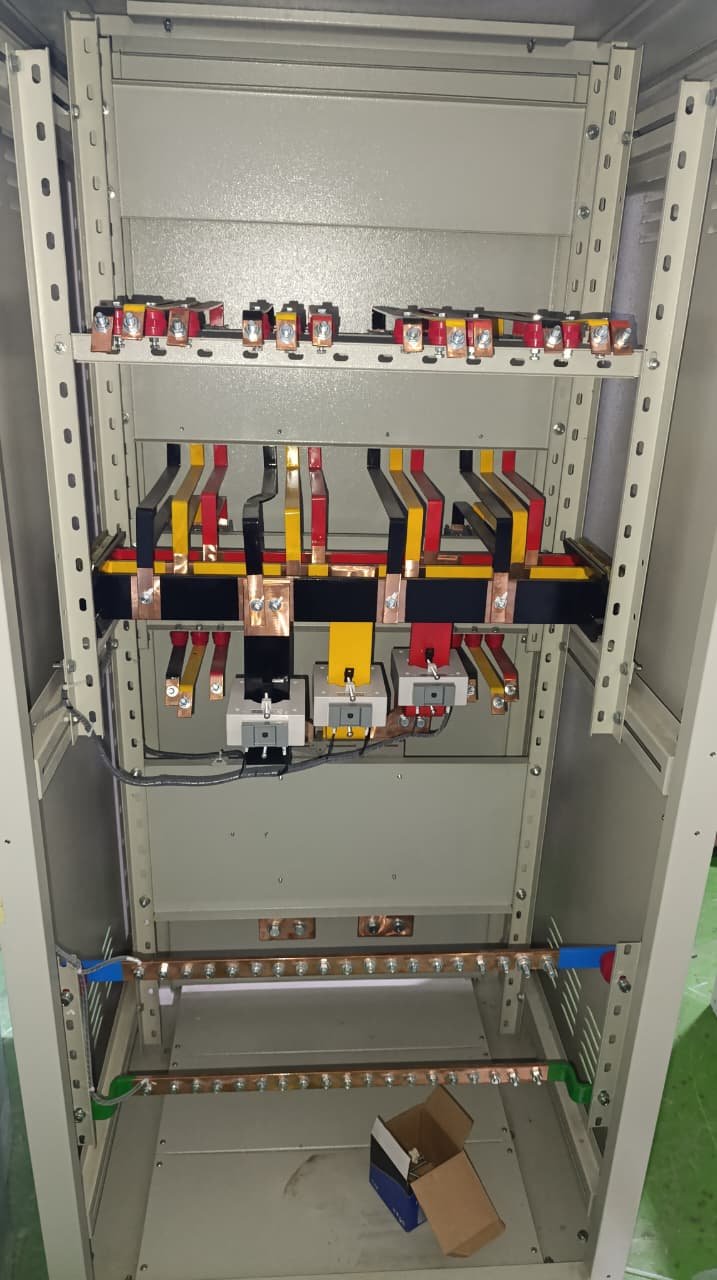

Multi-Tier Copper Busbar Droppers with Phase Heat-Shrink Insulation

High-amperage electrolytic copper busbar droppers (Cu-ETP 99.9%) insulated with standard phase color heat-shrink tubing: Red (R), Yellow (S), Black (T), and Blue (N).

Material: Electrolytic Tough Pitch Copper (Cu-ETP) Kapasitas Hantar Arus: 3.200 A

LVMDP & Main Switchboard © BRT Real Field

Control Terminal Termination by BRT Workshop Electrician

BRT electrical specialist wiring and testing control cable continuity on low-voltage switchboard prior to Factory Acceptance Testing (FAT).

Fasilitas: Workshop Baskara Riau Teknik, Pekanbaru Prosedur: Factory Acceptance Test (FAT)

Automatic Capacitor Bank © BRT Real Field

Schneider Electric VarPlus Can Power Capacitors

Heavy-duty Schneider Electric VarPlus Can power capacitor units mounted on capacitor bank rack for automatic power factor correction (Cos Phi > 0.95) and total PLN kVARh penalty elimination.

Merk: Schneider Electric VarPlus Can Fungsi: Kompensasi Beban Induktif Motor

Automatic Capacitor Bank © BRT Real Field

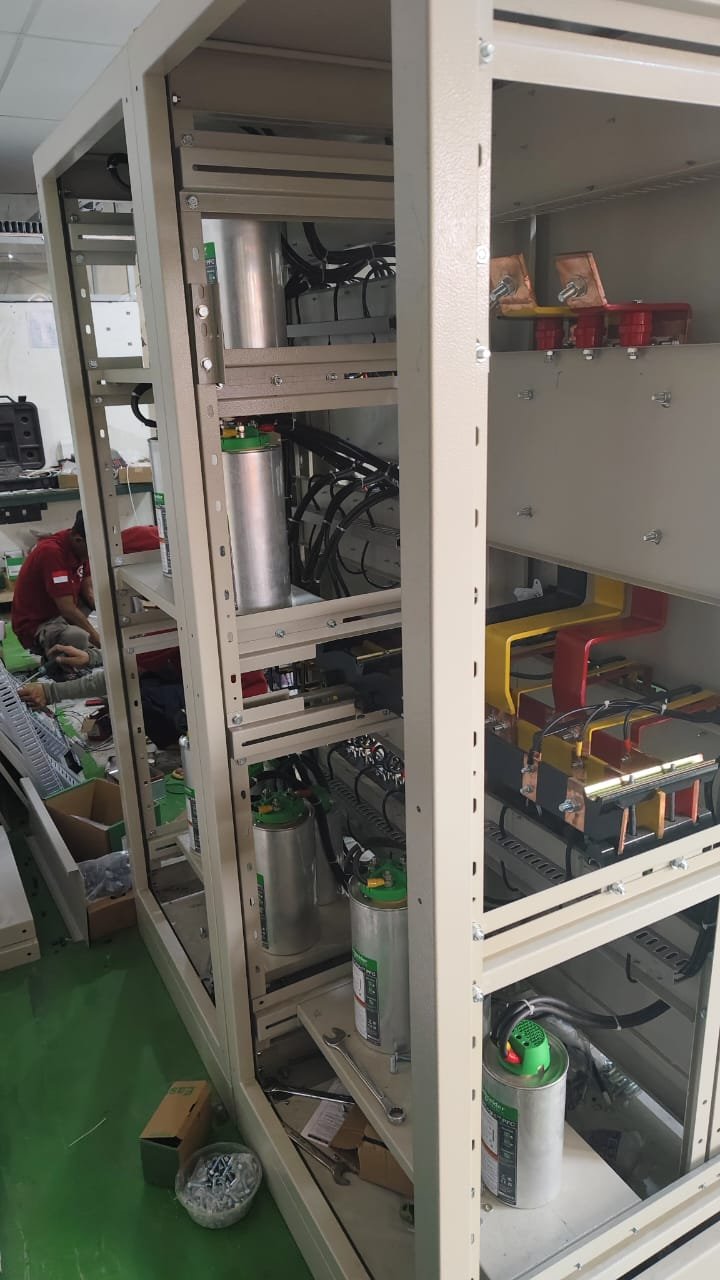

Capacitor Bank Internal Busbar Layout & Dedicated Switching Contactors

Internal layout of automatic capacitor bank switchgear showing compact copper busbar feeders and dedicated capacitor switching contactors with inrush current damping resistors.

Kontaktor: Dedicated Capacitor Contactor Proteksi Arus Kejut: Damping Resistors

Capacitor Bank Multi-Step Switching Stage & HRC Backup Fuses

Multi-step automatic capacitor bank switching stage protected by high-rupturing-capacity (HRC) fuses for individual reactive power step protection.

Langkah Kompensasi: 6 – 12 Steps Automatic Pengaman: HRC Fuse Links

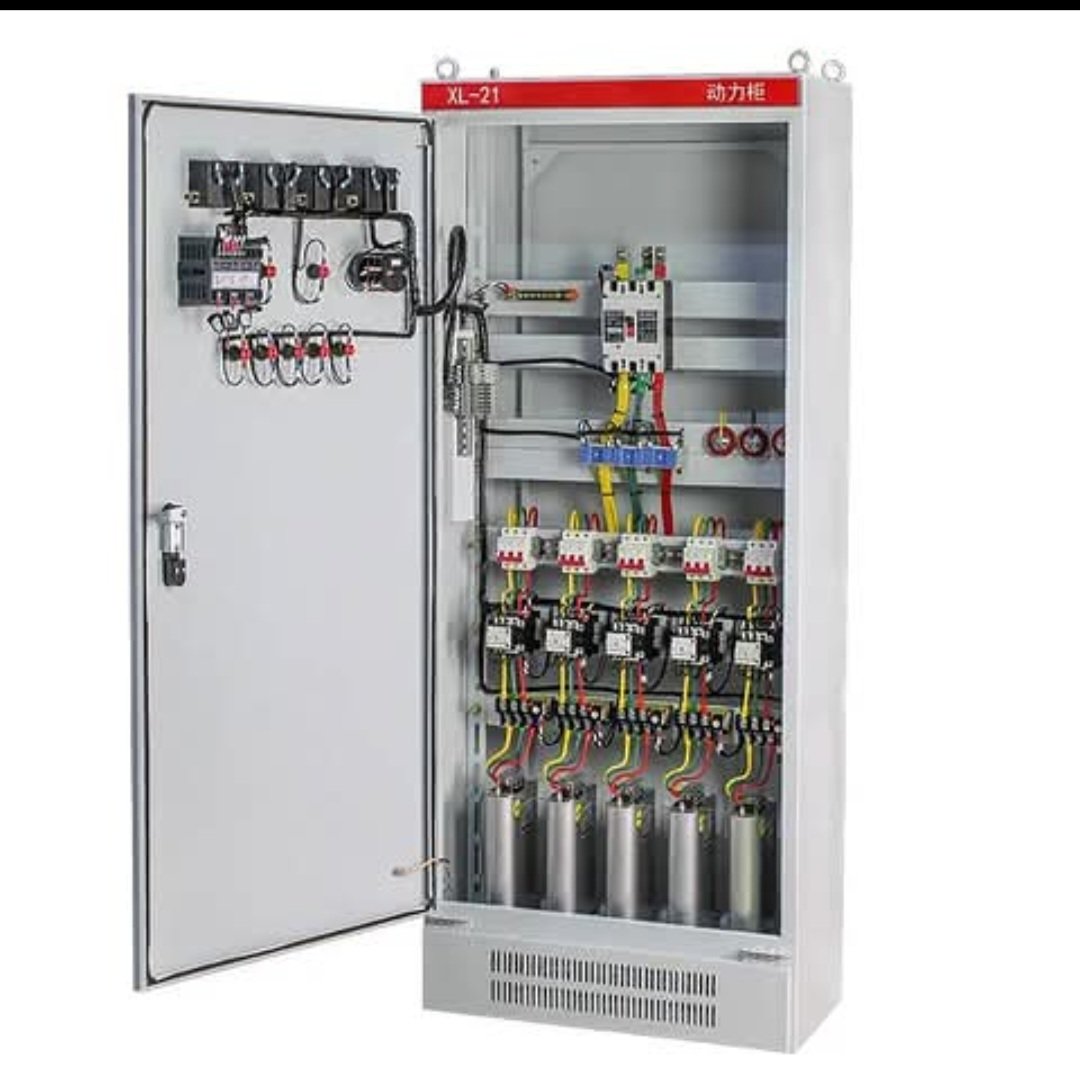

Free-Standing Automatic Capacitor Bank Panel Ready for Delivery

Free-standing automatic capacitor bank cubicle fabricated at BRT workshop, having successfully passed automatic step switching functionality testing prior to client delivery.

Tipe: Floor Standing Enclosure Kapasitas: 600 kVAR / 400 V

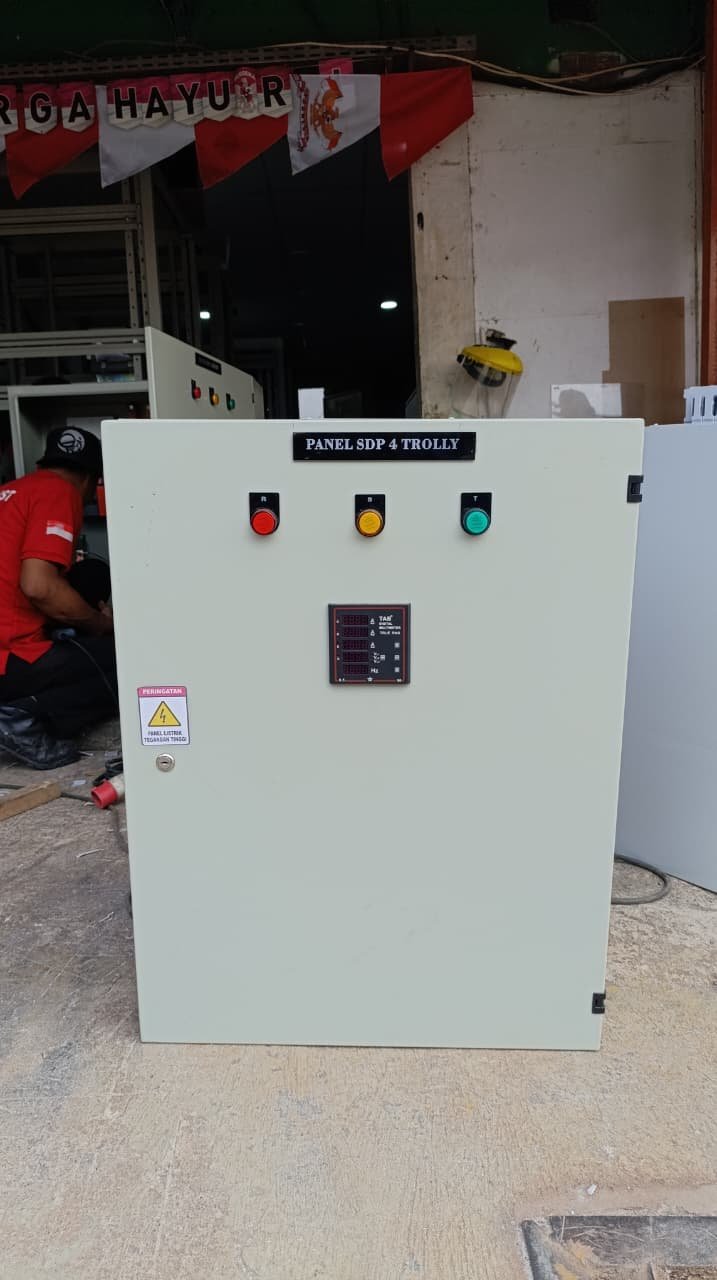

SDP 4 Trolley Panel — Industrial Crane Material Handling

Sub Distribution Panel (SDP) specifically fabricated for palm oil mill trolley cranes, featuring digital current monitoring, 3-phase pilot lights, and vibration-isolated enclosure.

Fungsi: Power Distribution Trolley Crane Aplikasi: Pabrik Kelapa Sawit (PKS)

SDP 2 Hoist Panel — Palm Oil Mill Fruit Cage Hoist Drive

SDP power panel for fruit cage hoist crane motors in palm oil mills, equipped with high-inrush MCCB breakers engineered for heavy inductive motor starting.

Aplikasi: Hoist Crane Lori PKS Karakteristik Trip: Motor Duty Protection

Interior SDP Panel: Solid Copper Busbars & Structured Wiring

Internal layout of sub distribution panel showcasing pure copper comb busbars, circuit protective breakers, and standardized grounding rails.

Busbar: Tembaga Cu murni Kanal Kabel: Slotted PVC Cable Trunking

Panel SDP 8 Industrial Machinery Power Distribution

Branch power distribution panel SDP 8 supplying electric motor loads across palm oil mill production lines and heavy manufacturing facilities.

Tipe: Wall-Mounted Industrial Box Rating Proteksi: IP54

Smart Factory Automation Control Panel with Multi-Selector Switches

Industrial process automation control panel featuring weather-resistant yellow protective cowl, multi-position selector switches, and microprocessor controller interface.

Sistem: Automated Process Control Interface: Manual/Auto Multi-Selector

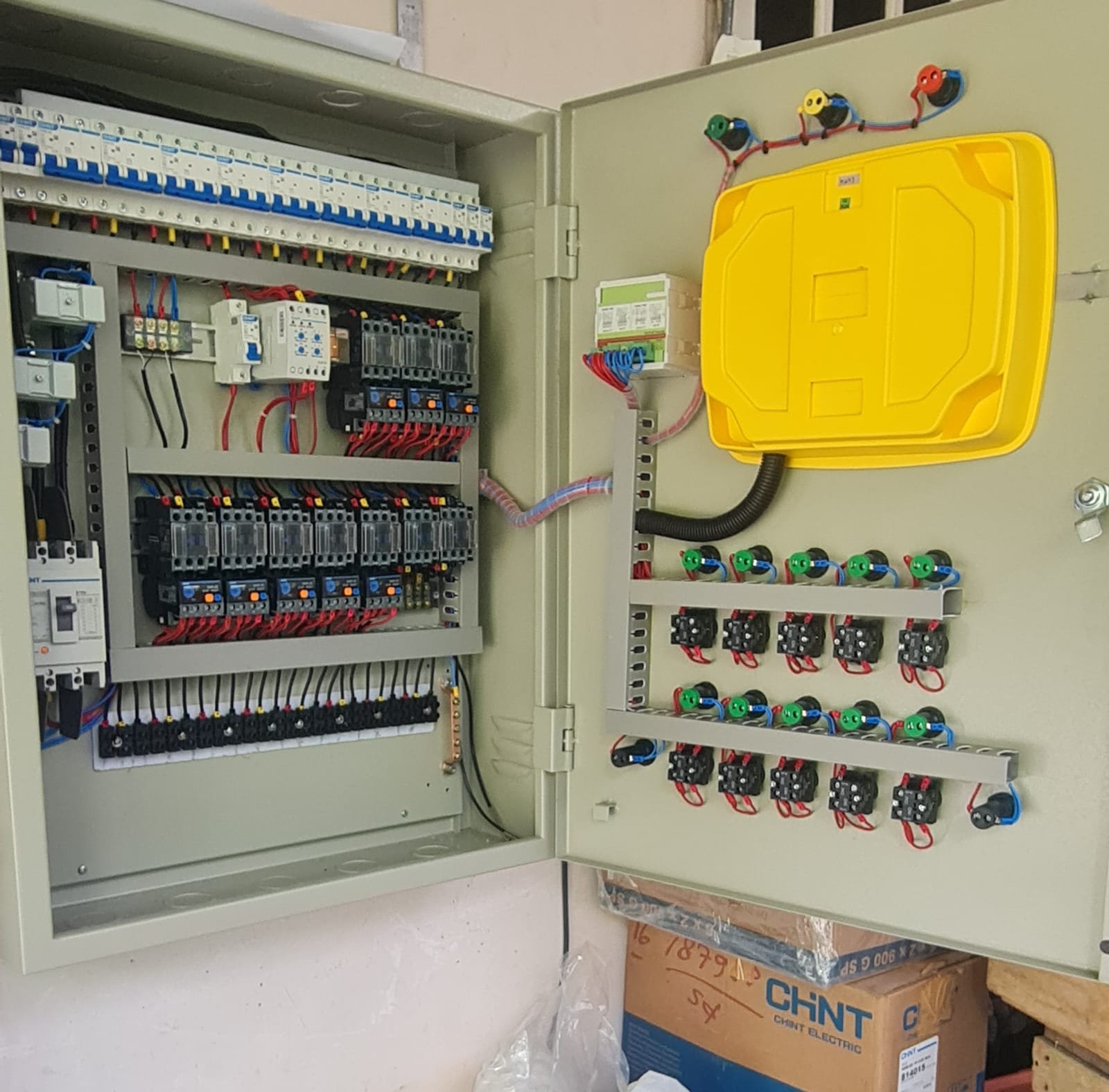

Automation Relay Logic Bank & DIN-Rail Terminal Blocks

High-density auxiliary relay bank and DIN-rail terminal blocks for sensor signal processing and automated machinery safety interlocking.

Komponen: Industrial Relays & DIN Terminals Aplikasi: Safety & Process Interlocking
